Description
DENKAligner is complete solution for dynamic alignment of guns and radars on ships.It consists of four different subsystems:
DENK Adapter
DENK Adapters are designed and manufactured according to the diameter and geometry of the gun barrel. Each DENK Adapter can be used with each Denk Camera. Adapters are delivered along with watertight, crushproof and dustproof protector cases for traveling in the harshest environments.| Adapter Diameter | 20, 25, 35, 40, 57, 76, 100, 127 mm |
| Repeatability | 50 μrad RMS |
DENK Camera
DENKCameras are engineered to deliver unparaleled image quality, flawlessly capturing every detail, ensureing unrivlaed precision in boresight alignment. With DENK cameras you can effortlessly adjust contrast, brightness, and gain, giving you flexibility to fine-tune settings manually or let the camera adapt automatically to every wheather condition. In addition, DENK benchmark lenses can optionally be installed to focus on images in a range of 3-180 meters. Denk Aligner comes with 2 cameras, additional cameras may included.
| Sensor Type | CCD |
| System | CCIR |
| FOV ( Horizontal / Vertical ) | 32 mrad / 24 mrad |
| Brightness / Contrast / Gain | Remote Auto and Manual Control |
| Temperature (working) | -5 C / +50 C |
| Humidity (working) | 20 % / 90 % |
| IP Code | IP 66 |
| Connector Type | MIL-STD-38999 |
| Dimensions | 86 mm x 73 mm x 220 mm |
| Weight | 1.8 kg |
| Voltage | 15 / 32 VDC |
DENK VPU
DENKVPU (Video Processing Unit)provides high-quality images and recordings with its eight PAL/CCIR inputs, to which four DENK Cameras and four external cameras can be connected. The length of connection cable is optional up to 200 meters
| Video Coding | H264 |
| DENK Camera Connector | 4 x MIL-STD-38999 |
| External Video Connector | 4 x 75 Ohm BNC |
| Video Interface | Ethernet |
| Serial Communication Interface | DB9-RS485 |
| Voltage | 110/230 VAC 50/60Hz / IEC-14 |
| Temperature (working) | 0°C / +50°C |
| Humidity (working) | 20 % / 90 % |
| Dimensions | 100 mm x 240 mm x 195 mm |
| Weight | 3 kg |
DENK Aligner Software
DENK Aligner Software is an innovative and user friendly technology with an integrated step-by-step guidance tool that offers great convenience to the user. After entering the information regarding the ship name, ship class, gun barrels, serial numbers, and calibration of the DENK Camerasand Adaptersinto the database once, this data will always be available and won't require re-entering for each project.
DENK Aligner Software allows you to perform all possible testing scenarios:
 |  |  |  |

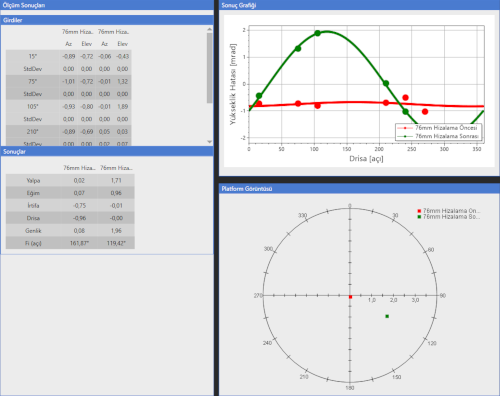

The testing process is rigorous and precise. High-precision measurements are used to collect data from at least three different azimuths, which are then analyzed to detect any alignment errors. The analysis phase is through and offers the option to repeat measurements or exclude any unwanted ones.
Clear Results
Tested and Approved
DENK Aligner System has successfully completed all field tests and has been thoroughly evaluated and proven to meet all performance standards. It is already implemented and utilized in various real-world applications.
